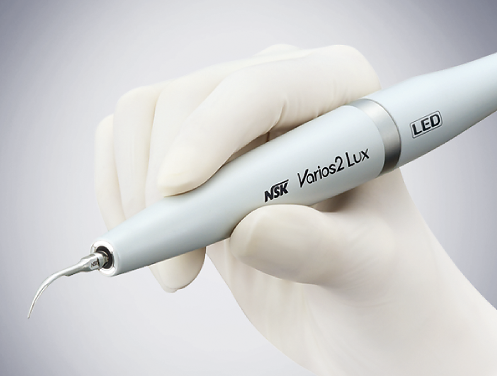

Outstanding Performance & Versatility

The all new Varios series feature the latest developments in piezo technology; The iPiezo engine from NSK assures stable output by automatically adjusting to the optimum frequency depending on the loading of the tip. The new, slimmer Varios series handpieces allow the operator to work more efficiently by improving accessibility to the oral cavity considerably. The new optic Varios handpiece is the slimmest and lightest handpiece currently available in the market*. The twin LED lights assure excellent virtually shadow free visibility, dramatically improving working conditions in the operating area.

・Slimmest and lightest* handpiece with LED illumination
・iPiezo engine ensures stable power output andperformance
・Twin LED lights through twin optical glass rods
・Optic and non-optic handpieces available
・Extensive tip range for a wide range of applications

Technology & Function

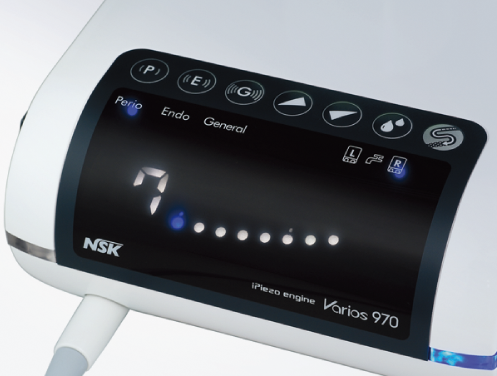

  • AI Engine
    AI Engine

    Feedback Function
    The NSK iPiezo engine supplies the appropriate power to the tip depending on the condition of the tooth surface. iPiezo engine provides a stable frequency output without dropping the power, even when removing hard calculus.

    Auto Tuning Function
    The Auto Tuning Function provides stable frequency to the tip at the selected power range. It allows the operator to feel the power output which ensures the optimum result.

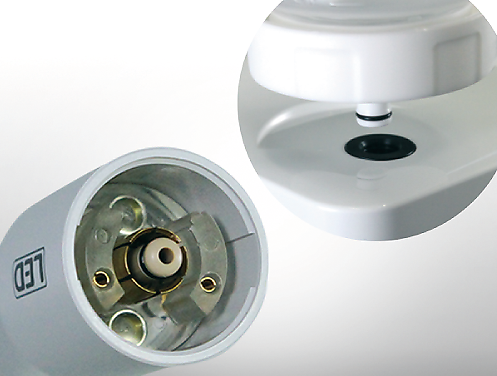

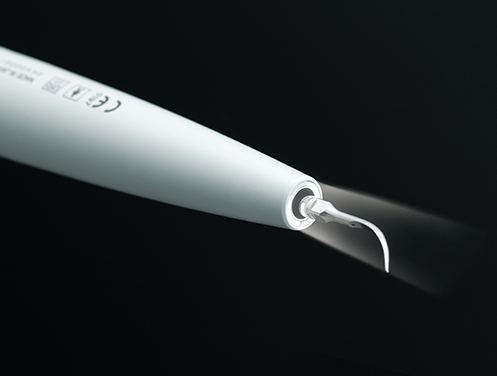

  • Twin LED
    Twin LED

    Twin LED delivers natural daylight quality light bringing significant advantages to the way you work

    Clearer : LEDs generate natural daylight quality light which assures clearer vision when compared to halogen light.

    Durable : LED light sources are longer lasting and more durable than halogen bulbs.

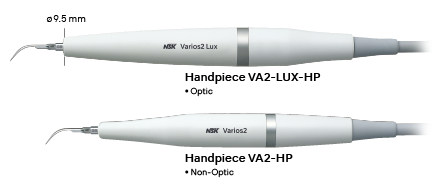

  • Slim Handpiece
    Slim Handpiece

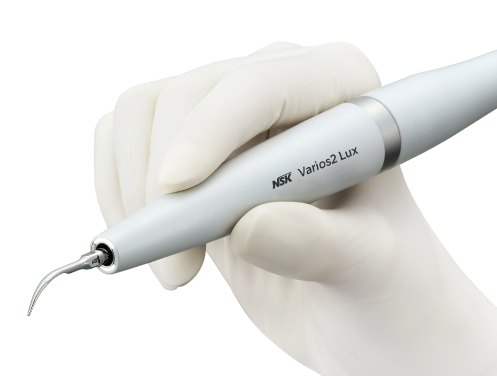

    The extremely slim Varios2 handpiece allows excellent accessibility and high visibility is ensured, offering more comfortable use.

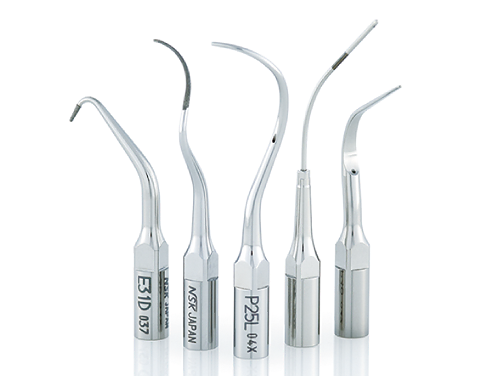

  • Tip Line-up
    Tip Line-up

    NSK offers a wide choice of ultrasonic scaler tips for clinical applications.

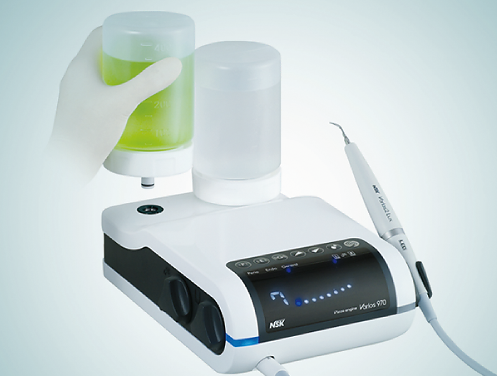

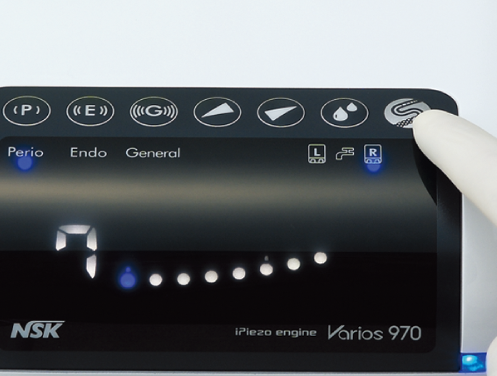

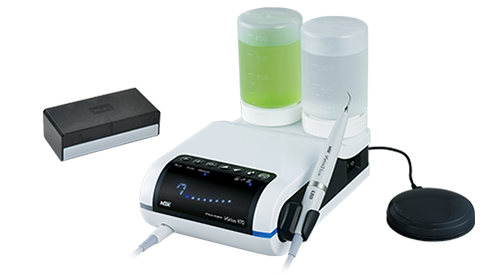

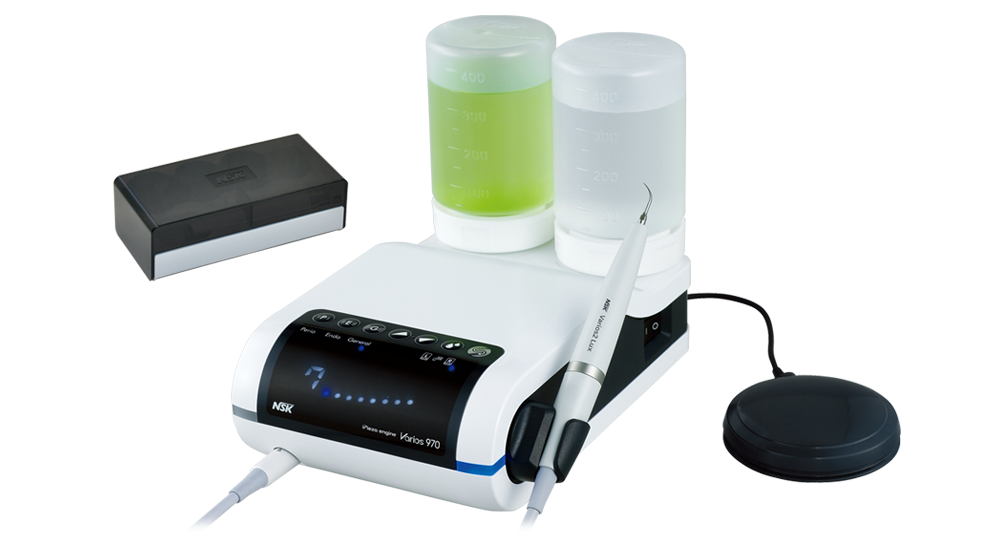

Varios 970

Varios 970

Varios 970 Optic Complete Sets

  • Optic
  • Model:VA970 LUX (120V)
  • Order Code:Y1001166
  • Optic
  • Model:VA970 LUX (230V)
  • Order Code:Y1001168

Varios 970 Non-Optic Complete Sets

  • Non-Optic
  • Model:VA970 (120V)
  • Order Code:Y1001174
  • Non-Optic
  • Model:VA970 (230V)
  • Order Code:Y1001175

Specifications

  • Power Supply
  • AC 120 V or 230 V 50/60 Hz
  • Frequency
  • 28-32 kHz
  • Max. Output
  • 11 W (G mode)
  • Dimensions
  • W 160 x D 270 x H 190 mm (Including Bottle)
  • Unit Weight
  • 2.1 kg (Except Attachment)
  • Bottle Volume
  • 400 mL (x 2 Bottles)

Contents

  • Control Unit
  • Handpiece
  • Handpiece Cord
  • 3 Scaling Tips (G4, G6, G8)

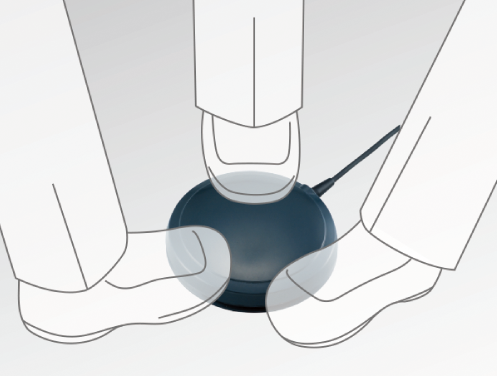

  • Foot Control (FC-70)
  • 2 x Irrigation Bottles
  • 3 x Tip Wrench with Torque Limiter
  • AC Power Cord
  • Sterilization Case

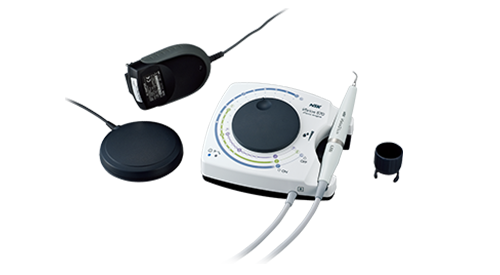

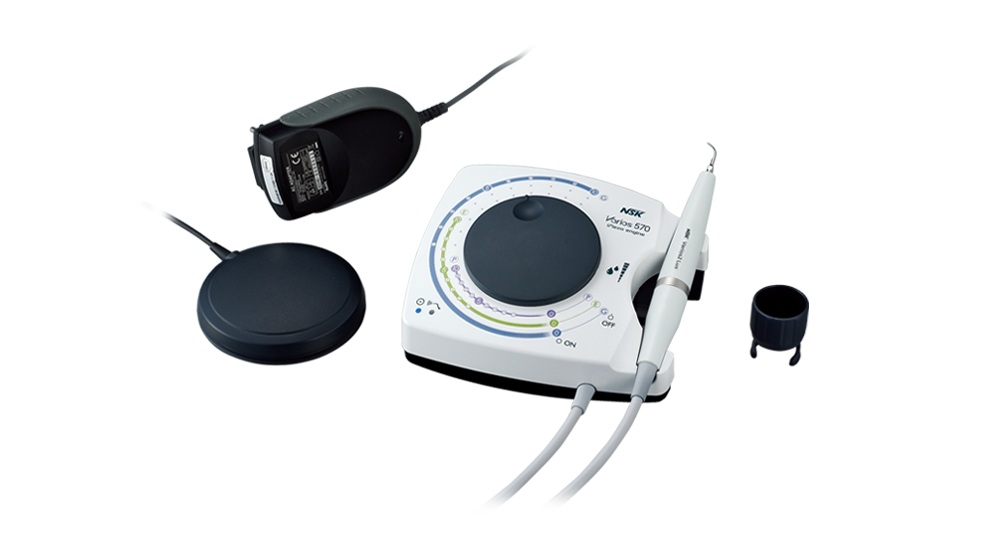

Varios 570

Varios 570

Varios 570 Optic Complete Sets

  • Optic
  • Model:VA570 LUX (120V)
  • Order Code:Y1001432
  • Optic
  • Model:VA570 LUX (230V)
  • Order Code:Y1001273

Varios 570 Non-Optic Complete Sets

  • Non-Optic
  • Model:VA570 (230V)
  • Order Code:Y1001269

Specifications

  • Power Supply
  • AC 100-240 V 50/60 Hz
  • Frequency
  • 28-32 kHz
  • Max. Output
  • 11 W (G mode)
  • Dimensions
  • W 160 x D 135 x H 65 mm
  • Unit Weight
  • 0.43 kg

Contents

  • Control Unit with Handpiece Cord
  • AC Adaptor
  • Handpiece
  • Water Filter Set
  • Water Supply Connector
  • Foot Control (FC-70)
  • 3 Scaling Tips (G4, G6, G8)
  • Tip Wrench with Torque Limiter

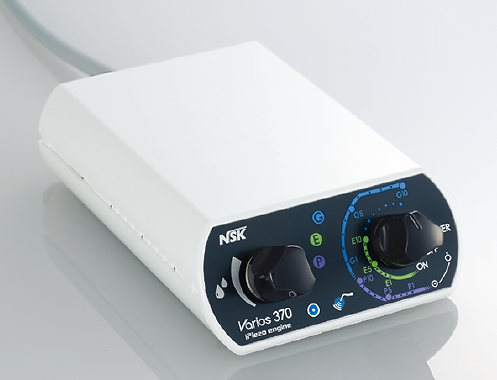

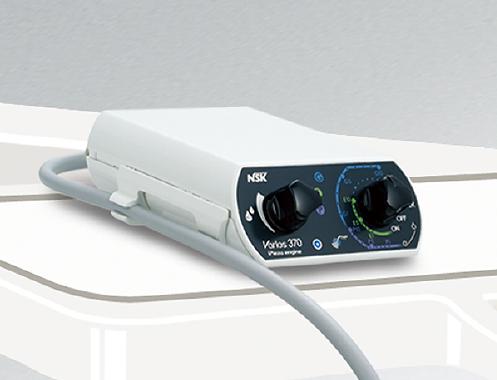

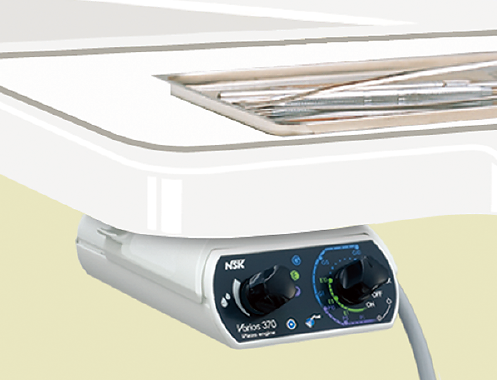

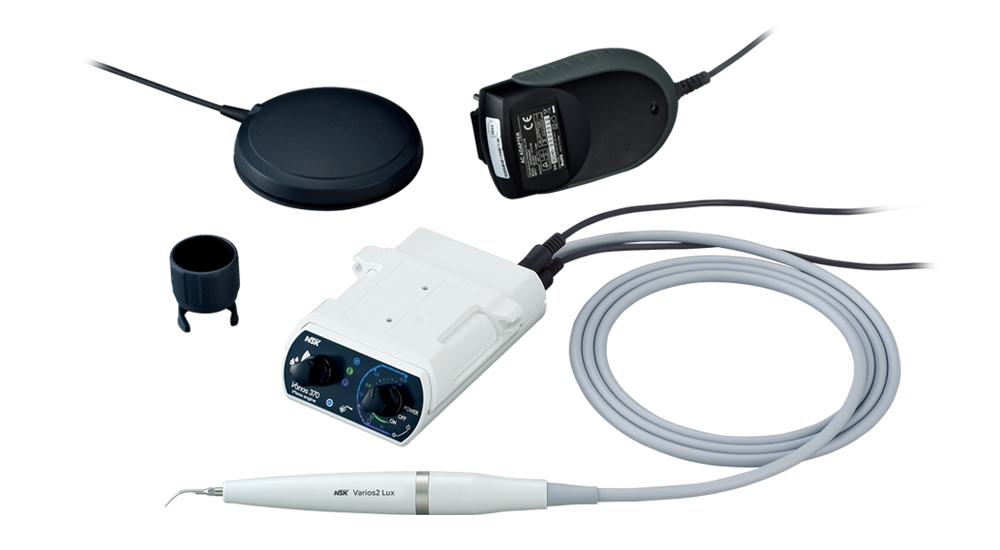

Varios 370

Varios 370

  • Optic
  • Model:VA370 LUX (120 V)
  • Order Code:Y1001956
  • Optic
  • Model:VA370 LUX (230 V)
  • Order Code:Y1001343
  • Non-Optic
  • Model:VA370 (120 V)
  • Order Code:Y1001958
  • Non-Optic
  • Model:VA370 (230 V)
  • Order Code:Y1001340

Specifications

  • Power Supply
  • AC 100-240 V 50/60 Hz
  • Frequency
  • 28-32 kHz
  • Max. Output
  • 11 W (G mode)
  • Dimensions
  • W 80 x D 115 x H 32 mm (without Knob and Cord)
  • Unit Weight
  • 0.43 kg (without Attachment)

Contents

  • Control Unit with Handpiece Cord

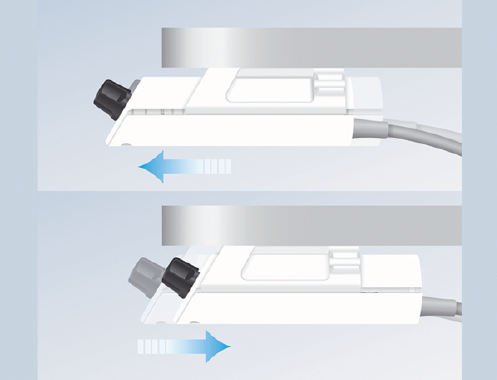

  • Control Unit Holder
  • AC Adaptor
  • Handpiece
  • Handpiece Holder
  • Water Filter Set
  • Water Supply Connector (120 V Only)
  • Foot Control (FC-71)
  • 3 Scaling Tips (G4, G6, G8)
  • Tip Wrench with Torque Limiter

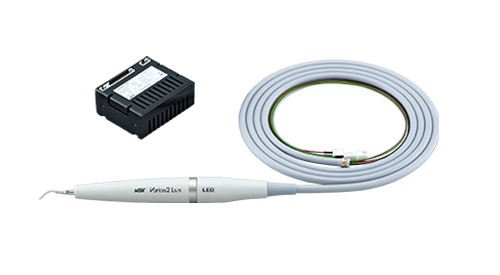

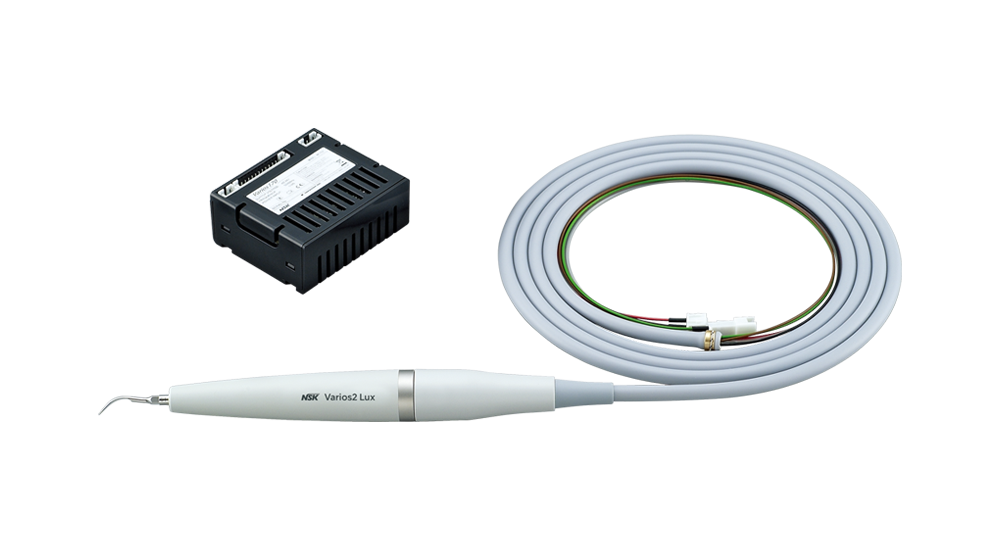

Varios 170

Varios 170

Varios 170 Optic Complete Set

  • Optic
  • Model:VA170LUXS1
  • Order Code:Y1001351
  • Optic
  • Model:VA170LUXS2
  • Order Code:Y1001441

Varios 170 Non-Optic Complete Set

  • Non-Optic
  • Model:VA170S1
  • Order Code:Y1001352
  • Non-Optic
  • Model:VA170S2
  • Order Code:Y1001442

Contents

  • Built-in Module
  • Handpiece
  • Handpiece Cord
  • 3 Scaling Tips (G4, G6, G8)
  • 3 x Tip Replacement Wrench with Torque Limiter
  • Sterilization Case

Varios 170 NAS Complete Set

  • Optic
  • Model:VA170LUXNAS
  • Order Code:Y1001916
  • Non-Optic
  • Model:VA170NAS
  • Order Code:Y1001898

Contents

  • Built-in Module
  • Handpiece
  • Handpiece Cord
  • 3 Scaling Tips (G2, G4, G6)
  • 1 x Tip Replacement Wrench with Torque Limiter

Specifications

  • Power Supply
  • AC 24 V ± 10% (or DC 24-36 V)
  • Frequency
  • 28-32 kHz
  • Max. Output
  • 11 W
  • Dimensions
  • W 63 x D 54 x H 26 mm
  • Module Weight
  • 59 g
