The internationally acclaimed Surgic Pro surgical micromotor system has evolved into “Surgic Pro2”.
There are 3 progress points, in operation, safety and wireless extensibility.

3 Progress Points

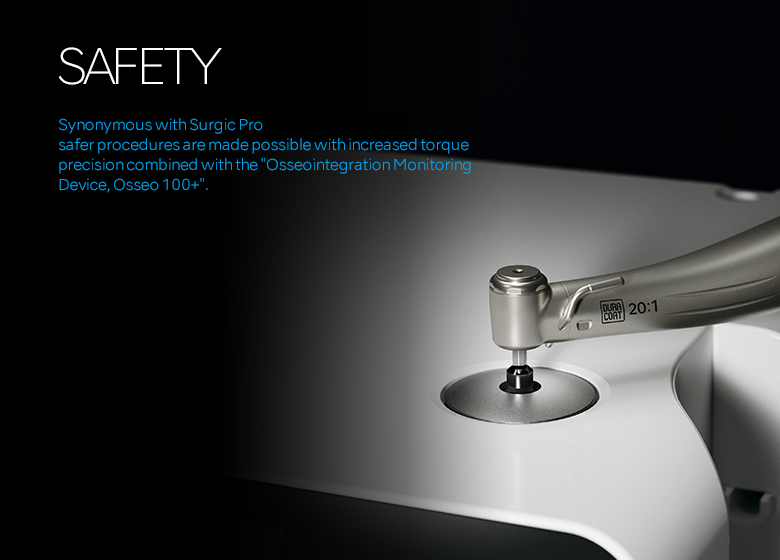

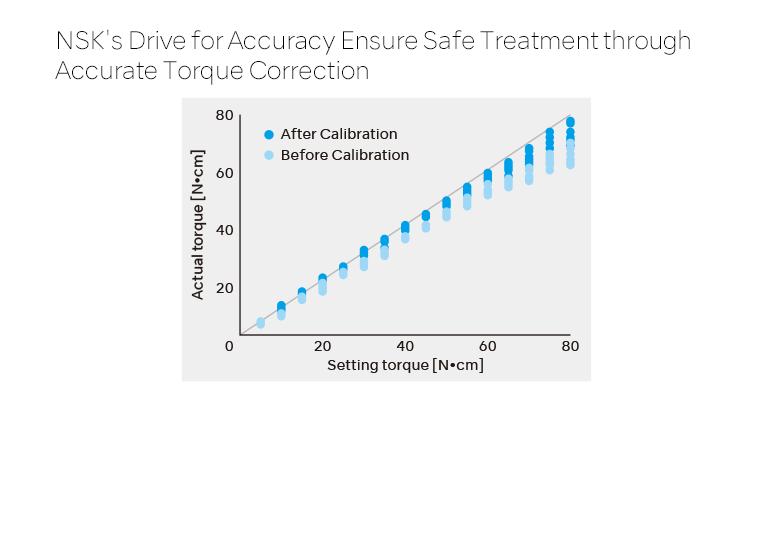

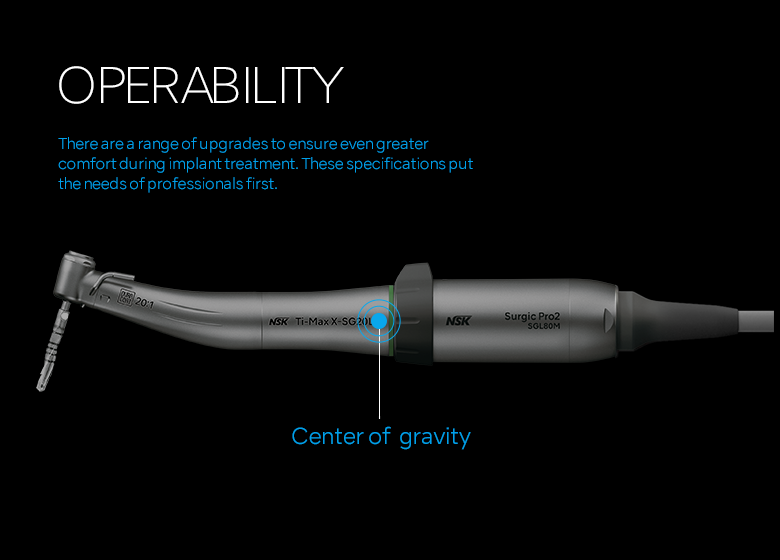

  • NSK's 'Advanced Handpiece Calibration' (AHC) function corrects the differences in actual handpiece condition using automatic calibration with no load current and load-bearing calibration to achieve accurate torque values for succesful implant surgery.

  • Osseo100+ measures implant stability and osseointegration to enhance decisions about when to load. Especially important when using protocols with shorter treatment time and treating risk patients.

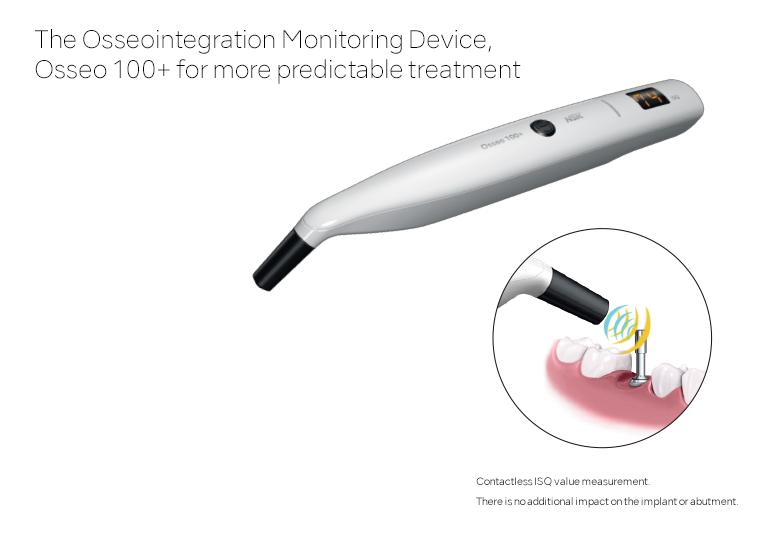

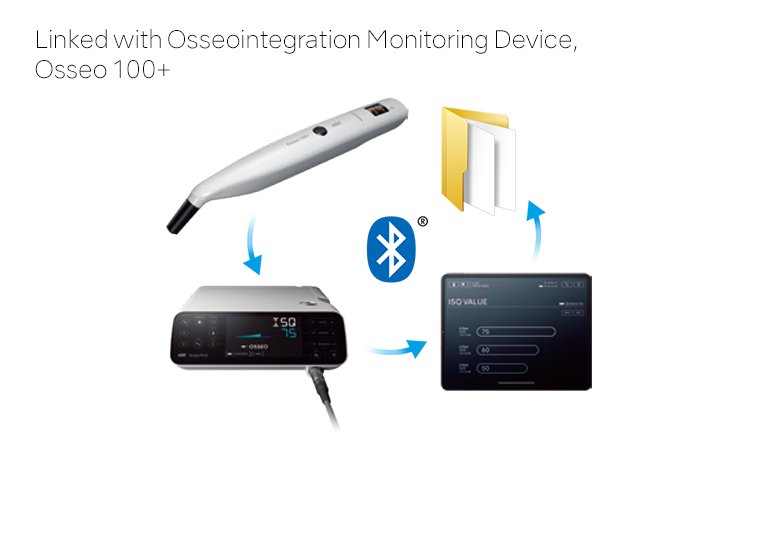

  • The Osseointegration Monitoring Device, "Osseo 100+" measures the implant stability quotient contactlessly and can be connected using Bluetooth®, permitting ISQ confirmation over a shared interface. You can share and manage the data of those measured ISQ scores on other terminals through Surgic Pro2.

Technology & Function

  • LCD Touch Panel

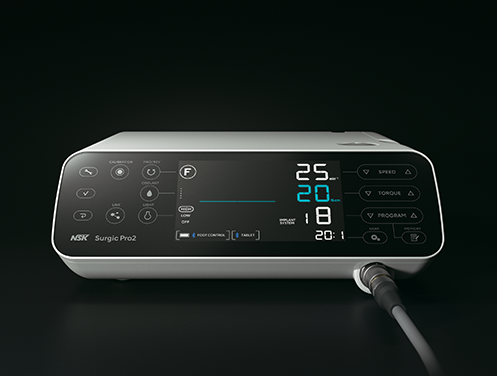

    LCD Touch Panel

    Visibility is guaranteed with the large, back-lit, high-contrast, LCD panel.
    The display can be adjusted in 10 brightness levels. The display's intuitive and easy-to-understand icons allow for smooth operation.

  • Easy-clean flat screen display

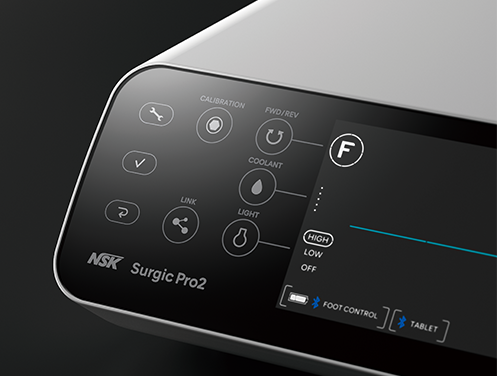

    Easy-clean flat screen display

    The sensitivity of the touch panel can be adjusted to reliably respond when surgical gloves and surgical barrier sheets are in use. Ultra narrow bezel of the display makes cleaning easier. The new design takes into account the latest treatment and cross-infection control requirements.

  • Silent and Smooth Irrigation Pump

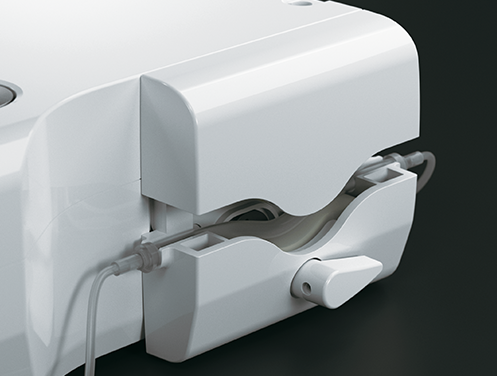

    Silent and Smooth Irrigation Pump

    The irrigation pump provides consistent and steady flow operating quietly in the background. Irrigation tube set-up is simple and straight-forward and the pump fits seamlessly in the compact and elegant design of Surgic Pro2.

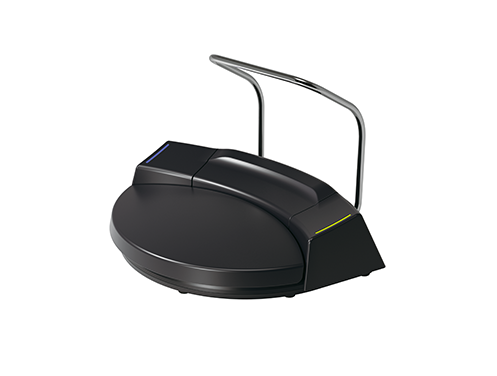

  • FOOT CONTROL WIRELESS
    FOOT CONTROL WIRELESS

    Bluetooth connectivity allows selection of the optimal position without worrying about cable length. The foot controller is 400g lighter than the previous model (hangar included) making it easy to reposition. You can keep your focus on the treatment.
    The "Coolant Solution Flow Volume Button", "Program Button" and "Forward/Reverse Button" may be customized using the 3
    installed buttons allowing the operator to choose their preferred mode of operation. The energy-efficient power supply uses 3 AAA batteries, which last about 6 months.
    A flashing light indicates when the batteries are running low.

  • Linked with the

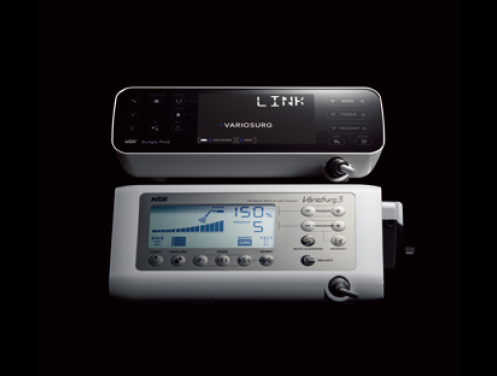

    Linked with the "VarioSurg 3" ultrasonic bone surgery system

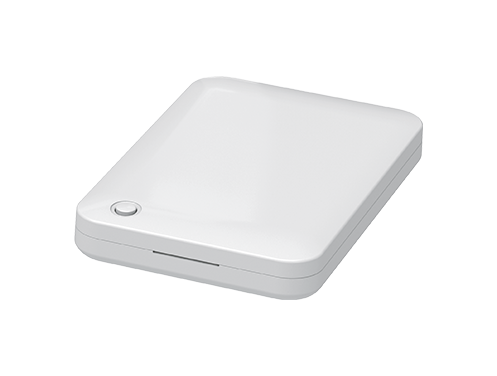

    Surgic Pro2 can easily be linked with the NSK ultrasonic surgical system VariosSurg 3 by adding our bluetooth link module.

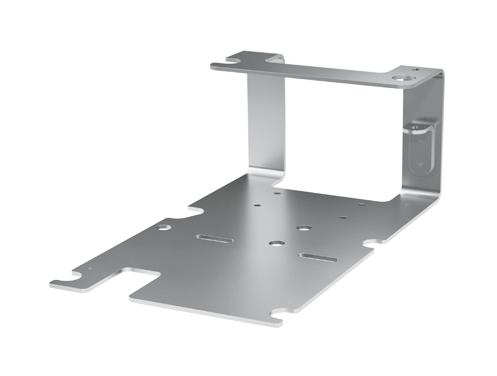

    With the NSK link stand the two units can be safely stacked to save space.

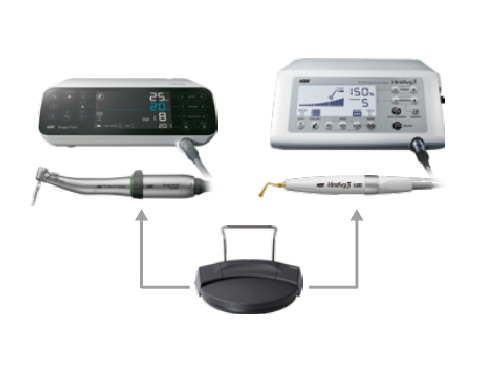

  • One Foot Control
    One Foot Control

    You can easily switch between Surgic Pro2 and VarioSurg 3 for improved flexibility and workflow.

  • Linked with iPads
    Linked with iPads

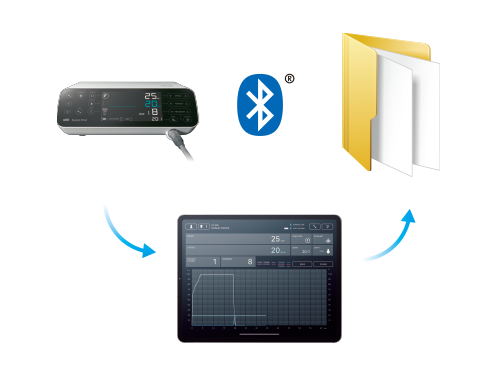

    Installing a dedicated application and connecting an iPad to the control unit enables real-time display of detailed procedural data, such as the rotation speed and the torque range.
    Procedural data can also be saved. Data can also be displayed and saved when connecting with Osseo 100+. Traceability data management of procedural details allows implant treatment to be tailored to individual patients.

  • Visibility is significantly improved with the high-resolution color LED
    Visibility is significantly improved with the high-resolution color LED

    Use of high-resolution color LED allows blood and gums to be seen as if naturally-lit, thereby providing increased visibility during treatment. The LED light source generates a minimal amount of heat and has excellent life expectancy.

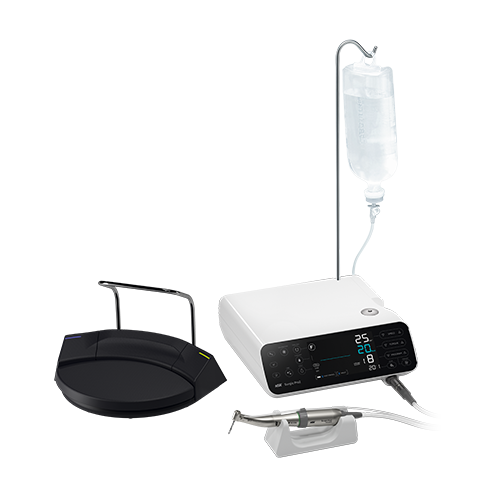

Surgic Pro2

Surgic Pro2

Surgic Pro2

COMPLETE SET with X-SG20ML

  • Optic
  • Model:Surgic Pro2 OPT
  • Order Code:Y1500515

COMPLETE SET with SG20ML

  • Non-Optic
  • Model:Surgic Pro2 NON-OPT
  • Order Code:Y1500516

Specifications

  • Power Supply
  • AC 100-240 V 50/60 Hz
  • Max. Pump Output
  • 75 mL/min
  • Programs
  • 8 Programs / Implant Systems
  • Dimensions
  • W 245 x D 235 x H 90 mm
  • Torque
  • 5-80 Ncm
  • Motor Speed
  • 200-40,000 min-1
  • Light Power (Optic Micromotor)
  • Over 32,000 LUX
  • Foot Control Functions
  • Coolant Solution Flow Volume Button, PRG(Program) Button, Forward/Reverse Button, Speed Control Pedal

Contents - COMPLETE SET with X-SG20ML

  • Control Unit

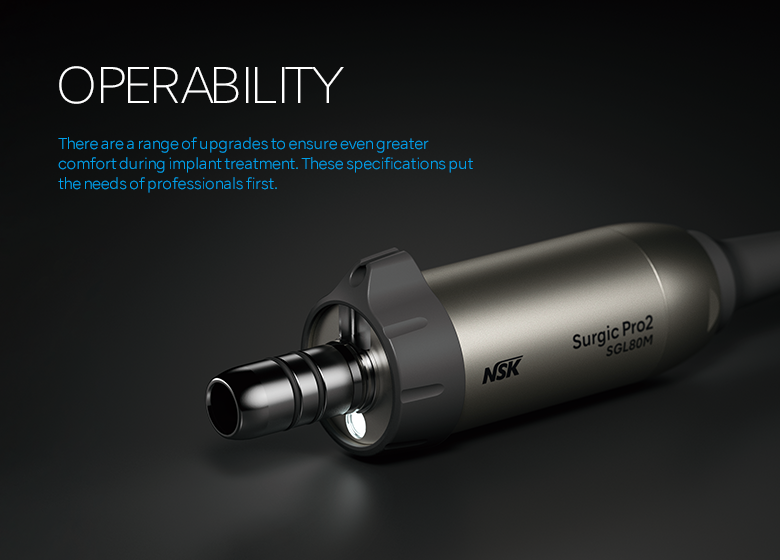

  • SGL80M Optic Micromotor
  • X-SG20ML Optic Handpiece (20:1 Reduction)
  • FOOT CONTROL WIRELESS
  • Irrigation tube (pack of 3) and other accessories

Contents - COMPLETE SET with SG20ML

  • Control Unit
  • SG80M Non-Optic Micromotor
  • SG20ML Handpiece (20:1 Reduction)
  • FOOT CONTROL WIRELESS
  • Irrigation tube (pack of 3) and other accessories

Compatible Terminals

Supported OS iOS
Compatible models iPad (5th generation)
iPad (6th generation)
iPad (7th generation)
iPad (8th generation)
iPad Pro 12.9-inch (3rd generation)
iPad Pro 11-inch
iPad Pro 12.9-inch (4th generation)
iPad Pro 11-inch (2nd generation)
iPad Pro 12.9-inch (5th generation)
iPad Pro 11-inch (3rd generation)

NSK has confirmed that SurgicPro2 App operates properly on the above terminals.
iPad® and iPad Pro® are trademarks of Apple Inc., registered in the U.S. and other countries.
