Removes Doubt

Osseo 100 measure implant stability and osseointegration to enhance decisions about when to load the implant. Especially important when using protocols with shorter treatment time and treating higher risk patients.
The uncomplicated operation that measures ISQ allows the implant loading period to be planned in advance. The reconstruction of crowns and bridges can be predicted to decrease the risk for failures. Measurements can be made without unnecessary impact since the equipment does not come into physical contact with the implant or abutment.

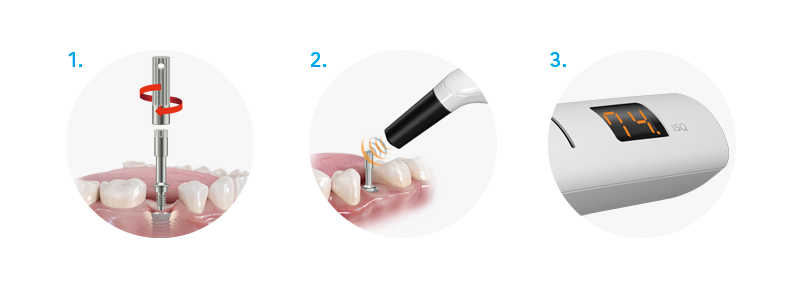

3-step Procedure

1. The MulTipeg™ is attached to the implant. It screws effortlessly into the implant’s internal threads. (approximately 6-8 Ncm of torque).

2. Just aim for the magnet on top of the MulTipeg™. Non-invasive, objective, accurate and repeatable. The peg is excited by magnetic pulses and vibrates due to the stiffness in the contact area between the bone and the implant surface.

3. An ISQ value is generated and shown on the display. This reflects the level of stability on the universal ISQ scale – from 1 to 99. The higher the ISQ value, the more stable the implant.

Technology & Function

  • About ISQ
    About ISQ

    Decreasing micro mobility with increasing ISQ values

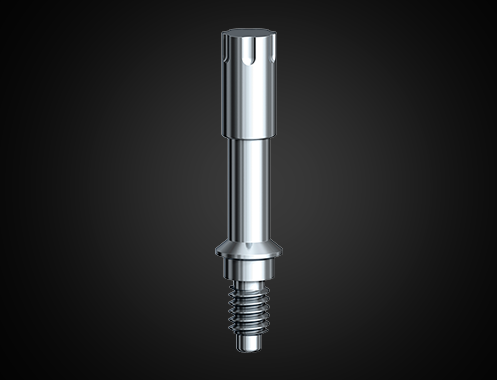

  • MulTipeg<sup>TM</sup>
    MulTipegTM

    •For all major implant systems *
    •Tissue friendly, durable titanium
    •Autoclavable appx. 20 times
    •Optimal platform fit
    •ISQ Standard Calibrated

    *There are different MulTipegs™ available made to fit different implant system and types. Please refer to the updated list form the supplier.

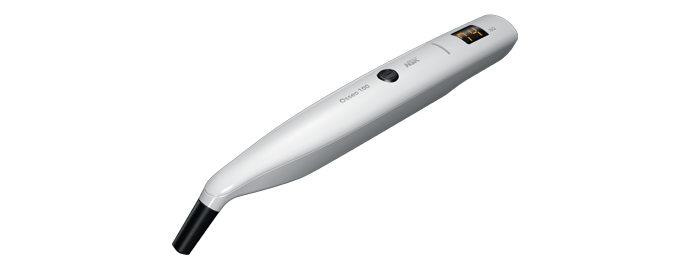

Osseo 100

Osseo 100

  • Model:Osseo 100
  • Order Code:Y1004175

Contents

  • Osseo 100 Instrument
  • MulTipeg Driver
  • Mains adapter and plugs

MulTipeg™ is not included, sold separately.
