Technology & Function

  • 60% Power Boost
    60% Power Boost

    FX Plus is dramatically more powerful than its predecessors thanks to the combination of NSK’s air turbine simulation technologies. Rated at a maximum of 30 watts, this new model boasts the highest power rating in its class. That concentrated power, along with the bur's high rotational accuracy, creates a synergistic effect that ensures fast, precise treatments.

  • Air pressure regulating valve

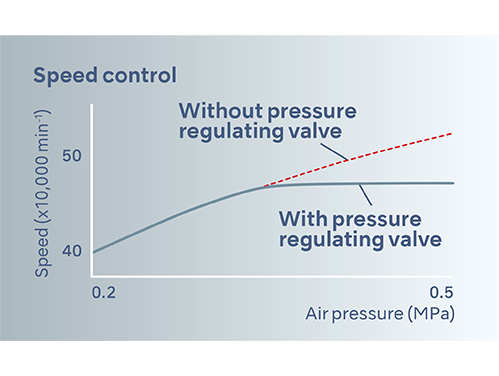

    Air pressure regulating valve

    The internal pressure regulating valve maintains a stable supply of pressure to the handpiece head section, preventing premature deterioration of the rotor due to excessive rotational pressure.

  • NSK Ceramic Bearings

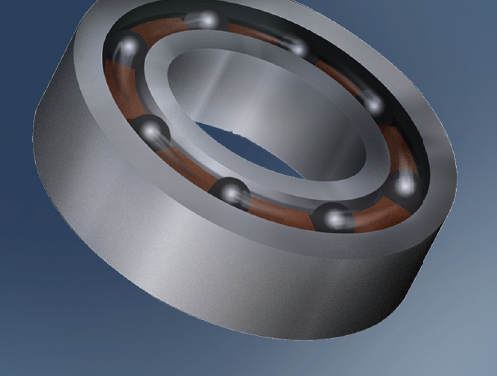

    NSK Ceramic Bearings

    Ceramic Bearings are 25% harder than conventional steel bearings but are only half the weight. Because frictional wear between the ball bearings and the bearing retainer is significantly reduced the efficiency and durability is significantly increased.

  • Clean Head System
    Clean Head System

    The Clean Head System has an anti-suck back mechanism that stops blood and foreign matter from entering the head from the oral cavity. As a result, the ball bearings and mechanical parts last longer.

  • Push Button Chuck
    Push Button Chuck

    Push Button Chuck is NSK's original push button auto-chuck mechanism that tensions the bur grip during rotation. It allows one-touch bur insertion and removal without tools. The bur lock mechanism is designed so that bur retention strength increases when high loads are applied to the bur.

  • Quattro Water Spray

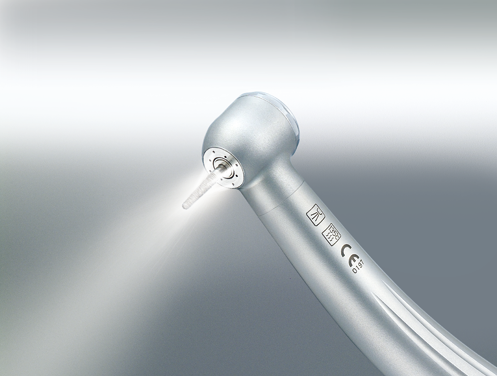

    Quattro Water Spray

    The NSK Quattro Water Spray effectively cools the entire surface of the bur with a high cooling effect, leaving no areas untreated.

QD Coupling

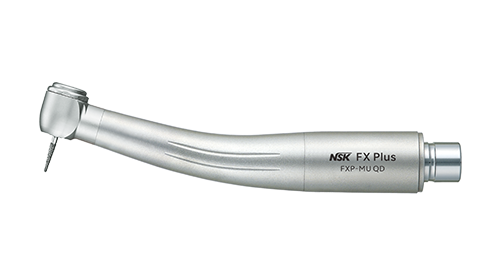

FXP-MU QD

  • QD Coupling
    • Non-Optic
    • Model:FXP-MU QD
    • Order Code:PA2304

    Specifications

    • Head
    • Miniature Head
    • Power
    • 23 W
    • Roatation
    • 380,000-450,000 min-1
    • Head Size
    • Φ 10.6 x H 12.4 mm
    • Water Spray
    • Quattro Spray
    • Body Material
    • Stainless Steel

    Both standard and short shank burs are applicable.

    Features

    • Ceramic Bearings
    • Clean Head System
    • Simple Cartridge Change

FXP-SU QD

  • QD Coupling
    • Non-Optic
    • Model:FXP-SU QD
    • Order Code:PA2305

    Specifications

    • Head
    • Standard Head
    • Power
    • 26 W
    • Roatation
    • 325,000-410,000 min-1
    • Head Size
    • Φ 12.1 x H 13.3 mm
    • Water Spray
    • Quattro Spray
    • Body Material
    • Stainless Steel

    Features

    • Ceramic Bearings
    • Clean Head System
    • Simple Cartridge Change

Midwest 4 Hole

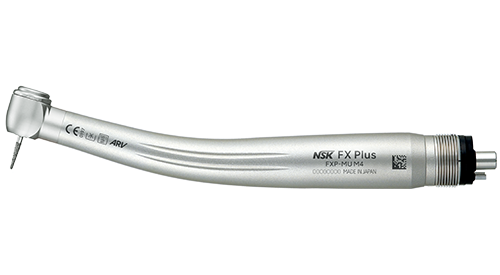

FXP-MU M4

  • Midwest 4 Hole
    • Non-Optic
    • Model:FXP-MU M4
    • Order Code:PA2300

    Specifications

    • Head
    • Miniature Head
    • Power
    • 27 W
    • Roatation
    • 380,000-450,000 min-1
    • Head Size
    • Φ 10.6 x H 12.4 mm
    • Water Spray
    • Quattro Spray
    • Body Material
    • Stainless Steel

    Both standard and short shank burs are applicable.

    Features

    • Ceramic Bearings
    • Clean Head System
    • Simple Cartridge Change

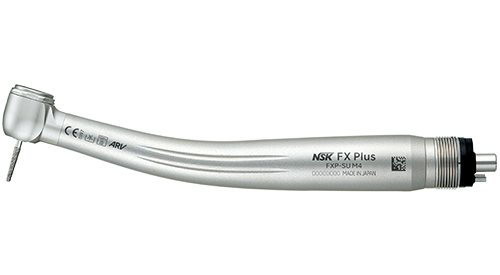

FXP-SU M4

  • Midwest 4 Hole
    • Non-Optic
    • Model:FXP-SU M4
    • Order Code:PA2301

    Specifications

    • Head
    • Standard Head
    • Power
    • 30 W
    • Roatation
    • 325,000-410,000 min-1
    • Head Size
    • Φ 12.1 x H 13.3 mm
    • Water Spray
    • Quattro Spray
    • Body Material
    • Stainless Steel

    Features

    • Ceramic Bearings
    • Clean Head System
    • Simple Cartridge Change

Borden 2 Hole

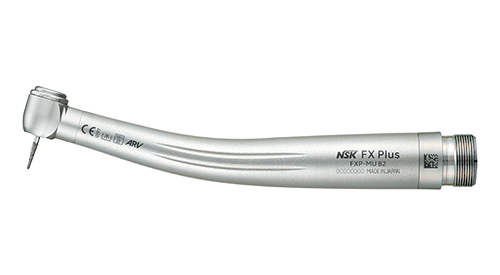

FXP-MU B2

  • Borden 2 Hole
    • Non-Optic
    • Model:FXP-MU B2
    • Order Code:PA2302

    Specifications

    • Head
    • Miniature Head
    • Power
    • 27 W
    • Roatation
    • 380,000-450,000 min-1
    • Head Size
    • Φ 10.6 x H 12.4 mm
    • Water Spray
    • Quattro Spray
    • Body Material
    • Stainless Steel

    Both standard and short shank burs are applicable.

    Features

    • Ceramic Bearings
    • Clean Head System
    • Simple Cartridge Change

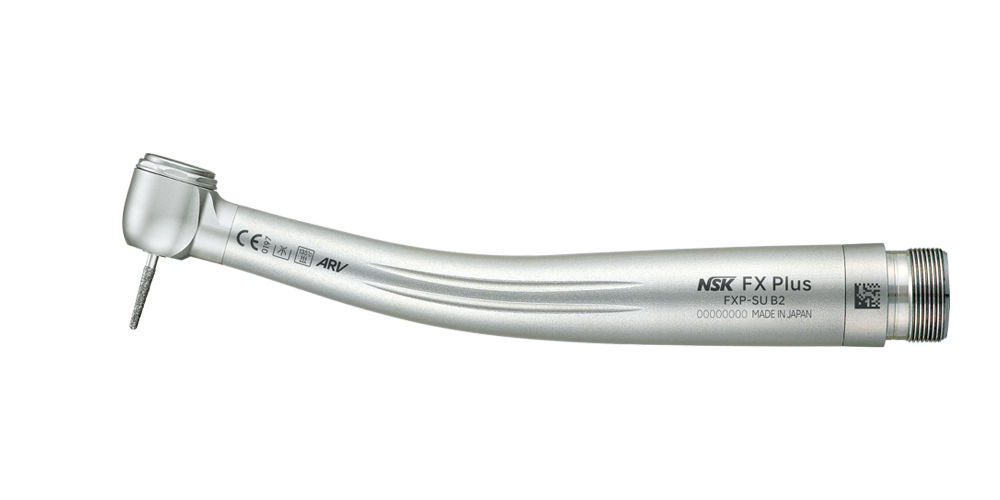

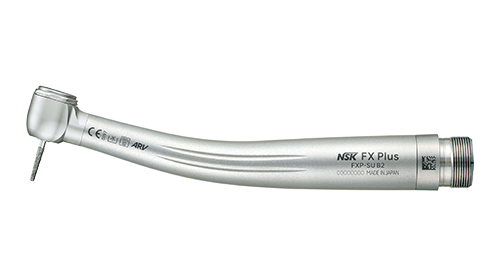

FXP-SU B2

  • Borden 2 Hole
    • Non-Optic
    • Model:FXP-SU B2
    • Order Code:PA2303

    Specifications

    • Head
    • Standard Head
    • Power
    • 30 W
    • Roatation
    • 325,000-410,000 min-1
    • Head Size
    • Φ 12.1 x H 13.3 mm
    • Water Spray
    • Quattro Spray
    • Body Material
    • Stainless Steel

    Features

    • Ceramic Bearings
    • Clean Head System
    • Simple Cartridge Change
