Technology & Function

  • Unsurpassed Durability
    Unsurpassed Durability

    Built to excel in clinical situations. Featuring a scratch-resistant stainless steel body and head. Thanks to its uniquely designed shock-resistant head design, PanaAir FX’s turbine rotor won’t get damaged even if dropped onto a concrete floor.

  • Exceptional Longevity
    Exceptional Longevity

    Newly designed bearing structure with greater wear resistants and extended lifespan.

  • 30% Power Boost
    30% Power Boost

    PanaAir FX is dramatically more powerful than its predecessors thanks to the combination of NSK’s air turbine simulation technologies. Rated at a maximum of 20 watts, this new model boasts the highest power rating in its class. That concentrated power, along with the bur's high rotational accuracy, creates a synergistic effect that ensures fast, precise treatments.

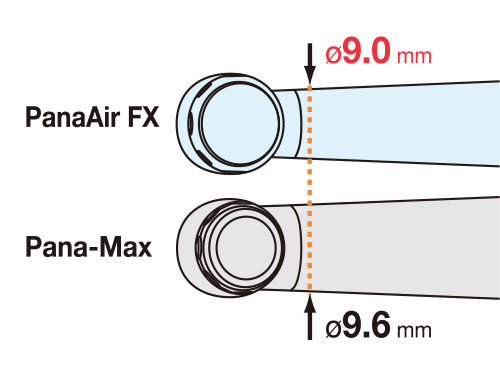

  • Slim-line Stainless Steel Body
    Slim-line Stainless Steel Body

    PanaAir FX’s slim-line body guarantees excellent accessibility to the entire oral cavity. As a result, visibility of the treatment area is maximized, allowing you to work with total efficiency.

  • Interchangeable Cartridge
    Interchangeable Cartridge

    Cartridges are easily replaced in your practice helping you reduce costs and down-time. The replacement cartridge incorporates the spray holes to guarantee cartridge and water spray always work well together.

  • Push Button Chuck
    Push Button Chuck

    Push Button Chuck is NSK's original push button auto-chuck mechanism that tensions the bur grip during rotation. It allows one-touch bur insertion and removal without tools. The bur lock mechanism is designed so that bur retention strength increases when high loads are applied to the bur.

Push Button Type

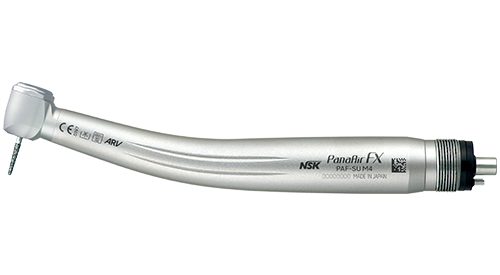

PAF-SU M4

  • Push Button Type
    • Non-Optic
    • Model:PAF-SU M4
    • Order Code:P1225

    Specifications

    • Head
    • Standard Head
    • Power
    • 20 W
    • Rotation
    • 350,000-450,000 min-1
    • Head Size
    • Φ 11.2 x H 13.4 mm
    • Water Spray
    • Single Spray
    • Body Material
    • Stainless Steel

    * Midwest 4 hole

    Features

    • Ceramic Bearings
    • Clean Head System (Push Button Type)
    • Push Button Chuck
    • Air Pressure Regulating Value

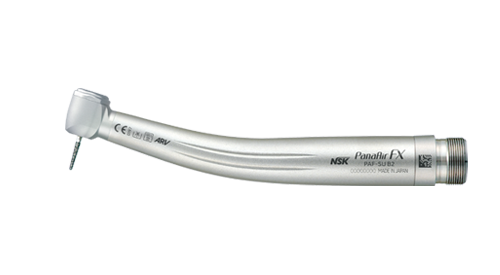

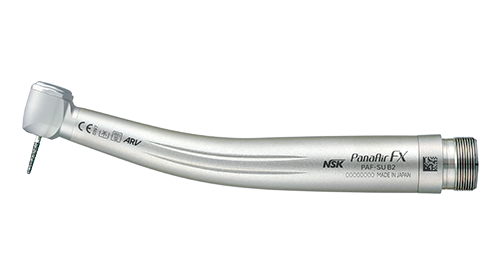

PAF-SU B2

  • Push Button Type
    • Non-Optic
    • Model:PAF-SU B2
    • Order Code:P1226

    Specifications

    • Head
    • Standard Head
    • Power
    • 20 W
    • Rotation
    • 350,000-450,000 min-1
    • Head Size
    • Φ 11.2 x H 13.4 mm
    • Water Spray
    • Single Spray
    • Body Material
    • Stainless Steel

    * Borden 2 hole

    Features

    • Ceramic Bearings
    • Clean Head System (Push Button Type)
    • Push Button Chuck
    • Air Pressure Regulating Value

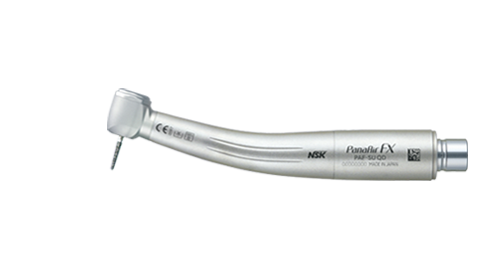

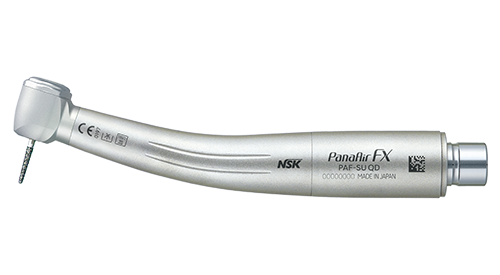

PAF-SU QD

  • Push Button Type
    • Non-Optic
    • Model:PAF-SU QD
    • Order Code:P1227

    Specifications

    • Head
    • Standard Head
    • Power
    • 20 W
    • Rotation
    • 300,000-400,000 min-1
    • Head Size
    • Φ 11.2 x H 13.4 mm
    • Water Spray
    • Single Spray
    • Body Material
    • Stainless Steel

    * QD Coupling

    Features

    • Ceramic Bearings
    • Clean Head System (Push Button Type)
    • Push Button Chuck

Wrench Type

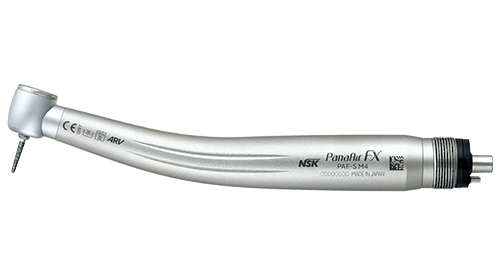

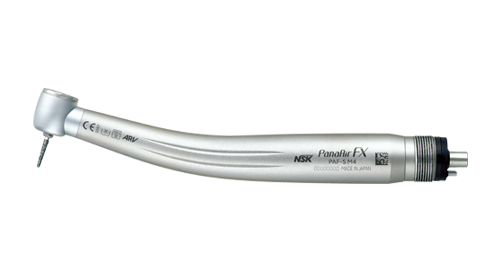

PAF-S M4

  • Wrench Type
    • Non-Optic
    • Model:PAF-S M4
    • Order Code:T1069

    Specifications

    • Head
    • Standard Head
    • Power
    • 17 W
    • Rotation
    • 350,000-450,000 min-1
    • Head Size
    • Φ 11.2 x H 12.6 mm
    • Water Spray
    • Single Spray
    • Body Material
    • Stainless Steel

    * Midwest 4 hole

    Features

    • Ceramic Bearings
    • Air Pressure Regulating Value
